ToughBody
The hard-core mechanical tension is bursting, and the sharp and popular lines create a surging muscular feeling
ToughBody
The hard-core mechanical tension is bursting, and the sharp and popular lines create a surging muscular feeling
ToughBody
The hard-core mechanical tension is bursting, and the sharp and popular lines create a surging muscular feeling
COLORFUL
The mountains, seas and land are separated from the six flavors and color rhyme

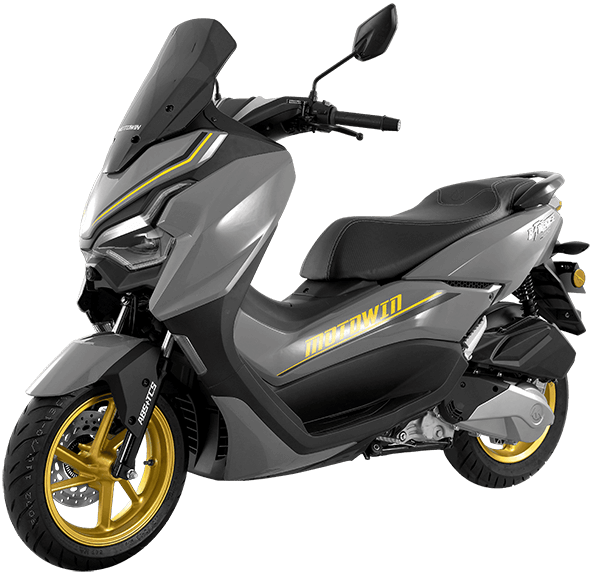

SMOKEY GREY

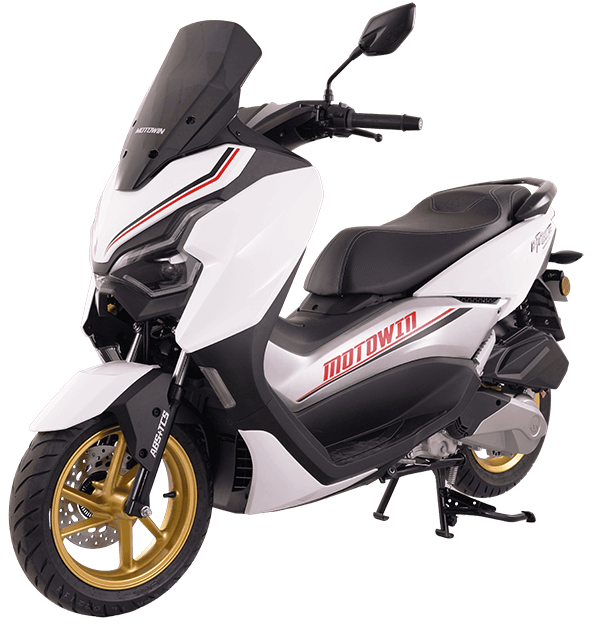

COLD WHITE
VERMILION RED
GLOW ORANGE

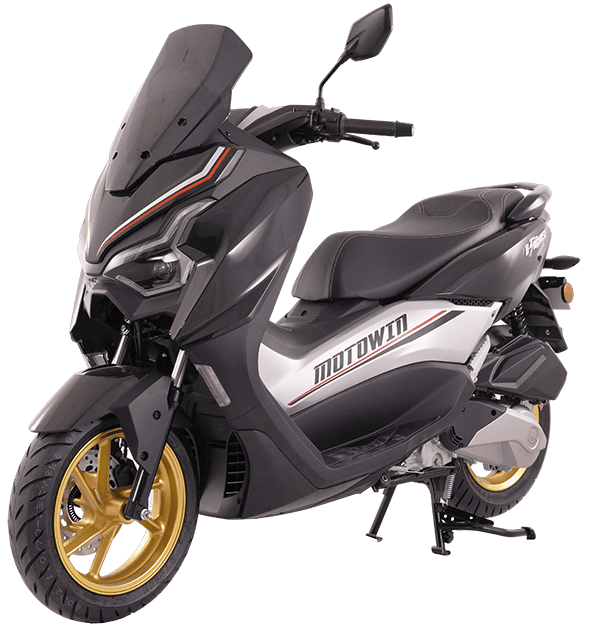

METALLIC BLACK

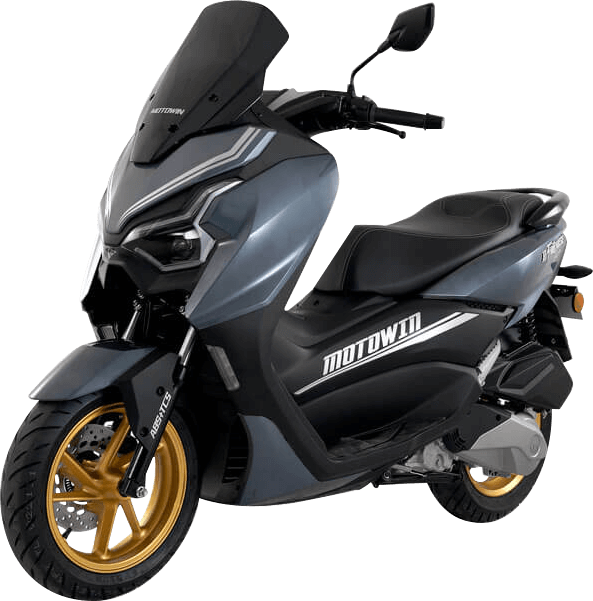

GRAPHITE BLUE

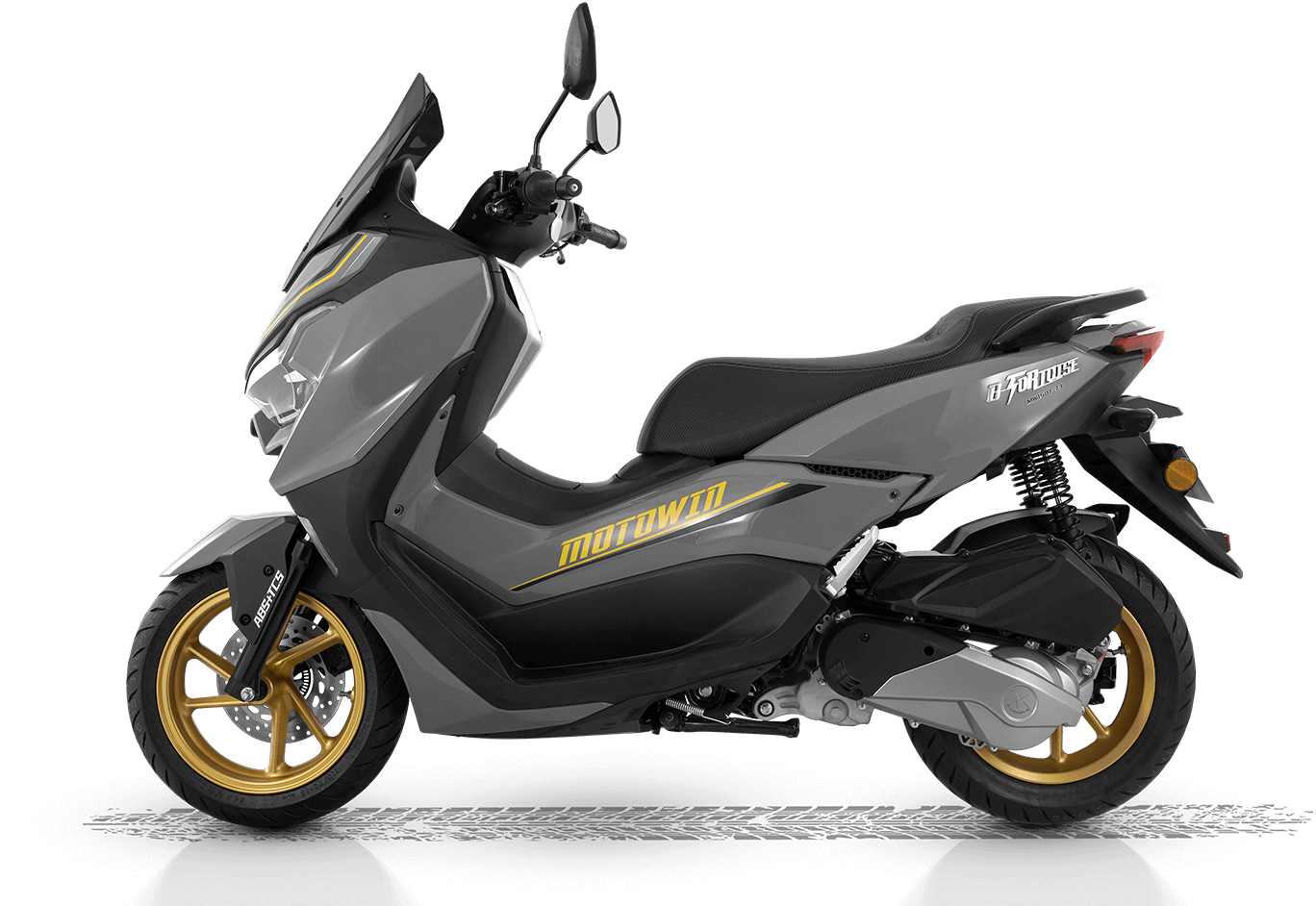

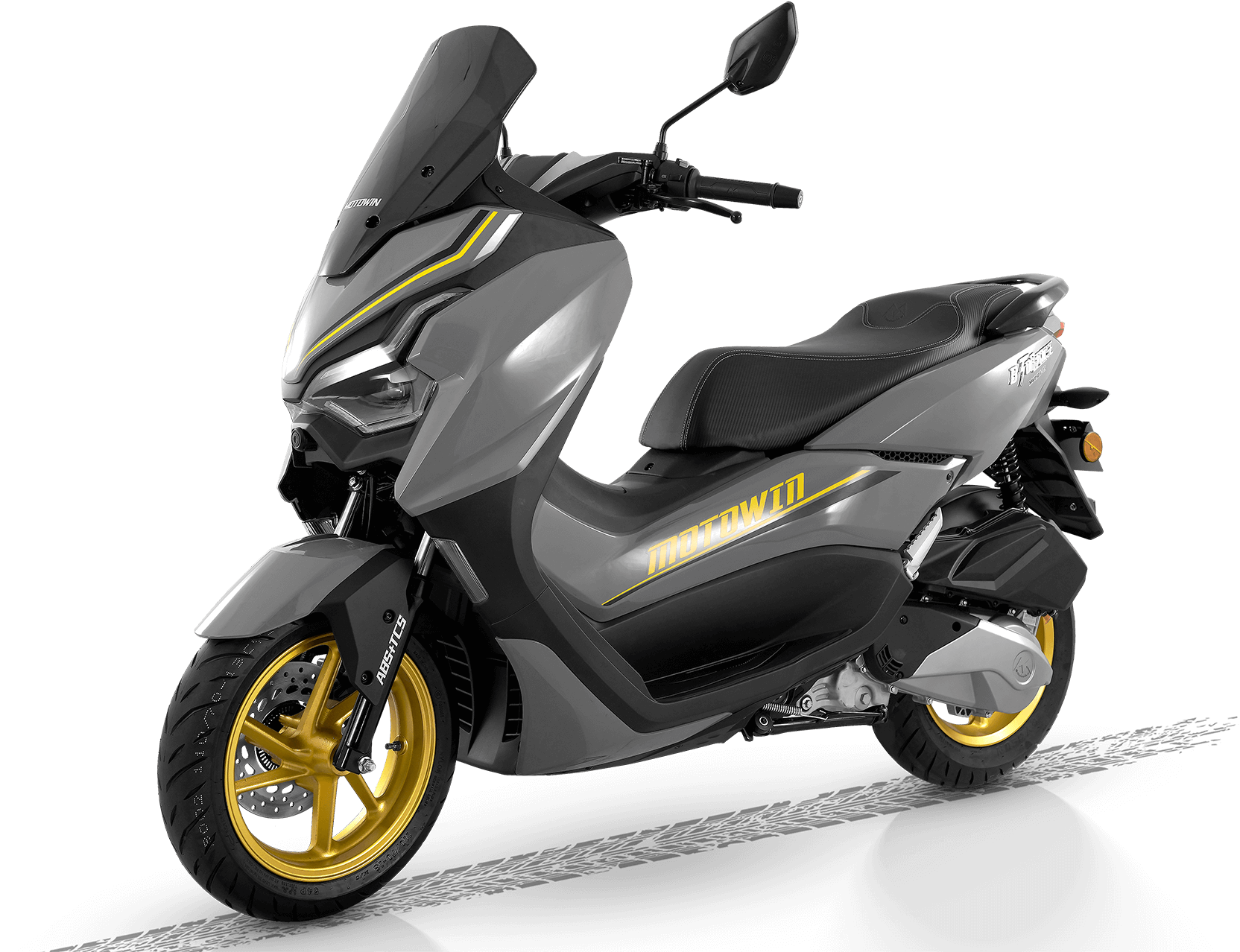

SMOKEY GREY
COLD WHITE

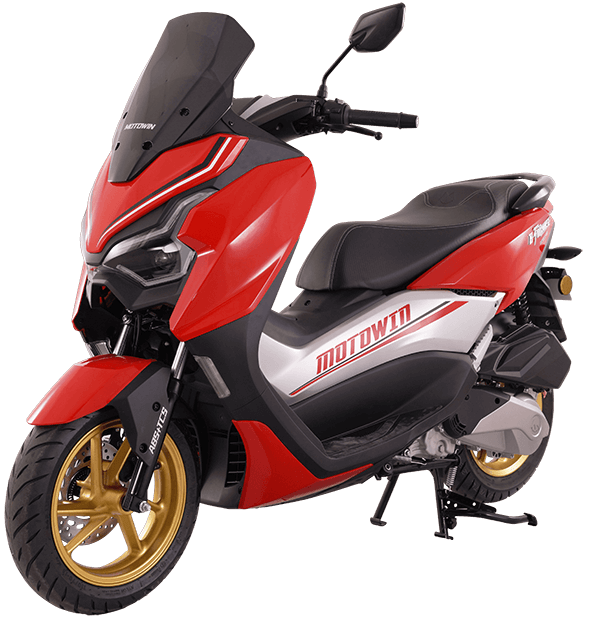

VERMILION RED

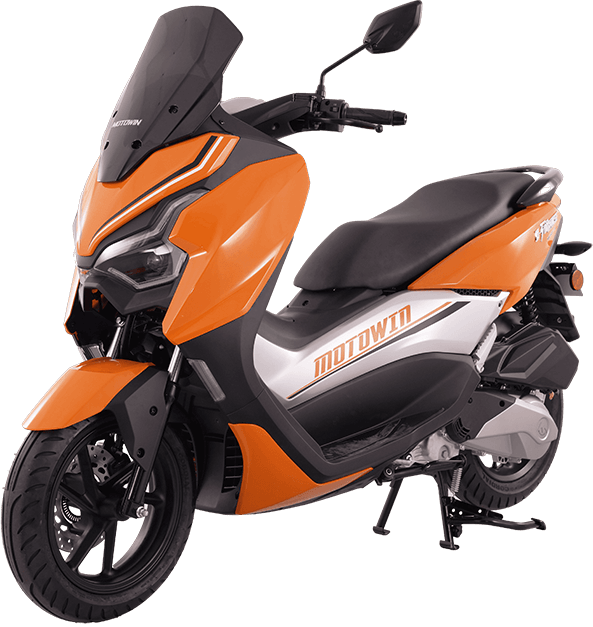

GLOW ORANGE
METALLIC BLACK
GRAPHITE BLUE
10.5KW
MAX. POWER @ 8500RPM
13.5N.M
MAX. TORQUE @ 6500RPM
10.6:1KW
COMPRESSION RATIO
57.3x57.9MM
BORE X STROKE
Body
| L x W x H（mm) | 1955x775x1275 |
| Wheelbase | 1350mm |
| Seat Height | 780mm |
| Curb Weight | 136KG |
| Min Ground Clearance | 100mm |
| Frame Form | Cradle frame |
| Fuel Tank Capacity | 10.5L |
Power
| Displacement | 150cc |
| Engine | Single cylinder,4-stroke,water cooled |
| Bore x Stroke | 57.3mm x 57.9mm |
| Max Power | 10.5kW/8500r/min |
| Max Torque | 13.5N.m/6500r/min |
| Compression Ratio | 10.6:1 |
| Fuel System | EFI |
| Gas Distribution | OHC (2 valves) |
| Gear Shifting | CVT |
| Clutch | Aotomatic centrifugal |
Other
| Front/Rear Shock Absorption | Upright vertical/Double-tube shock absorption |
| Front/Rear Brake | Single disc,double pistons |
| Front/Rear Rims | MT 3.0X13， MT 3.50X13 |
| Front/Rear Tires | 110/70-13M/C，130/70-13M/C |
| Wheel | Aluminum alloy casting |
TECH SPECS

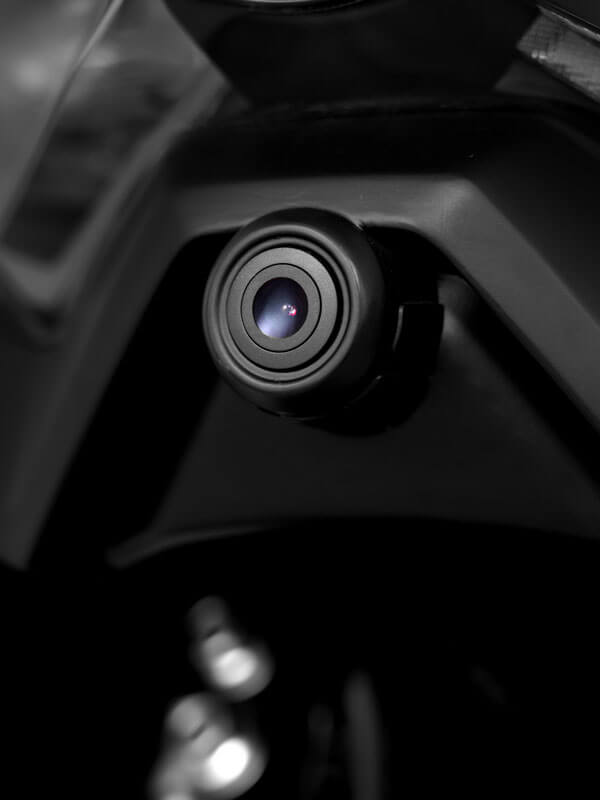

DVR
Wider riding view
Complete record without lost
High-tech and reliable
Wider riding view
Complete record without lost
High-tech and reliable

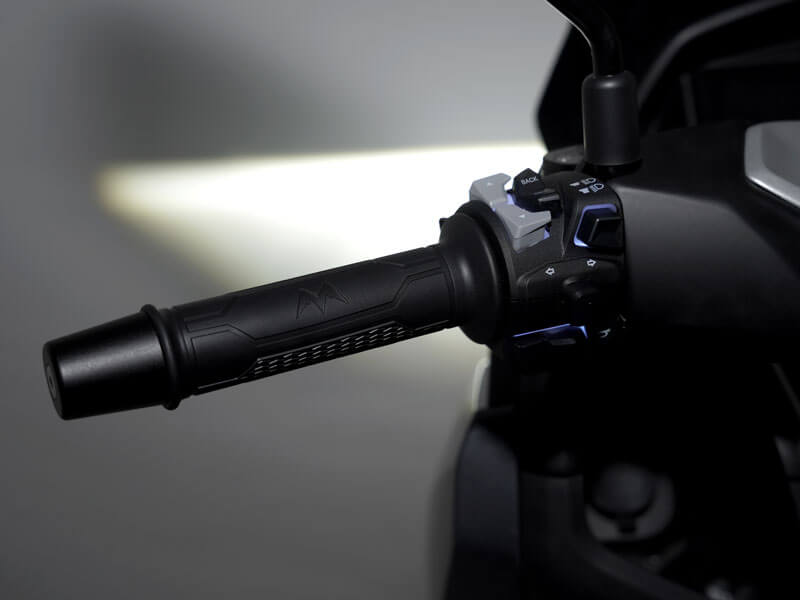

Backlight Handlebar
Dual-line throttle
Comfortable and sensitive
Easy to control
Dual-line throttle
Comfortable and sensitive
Easy to control

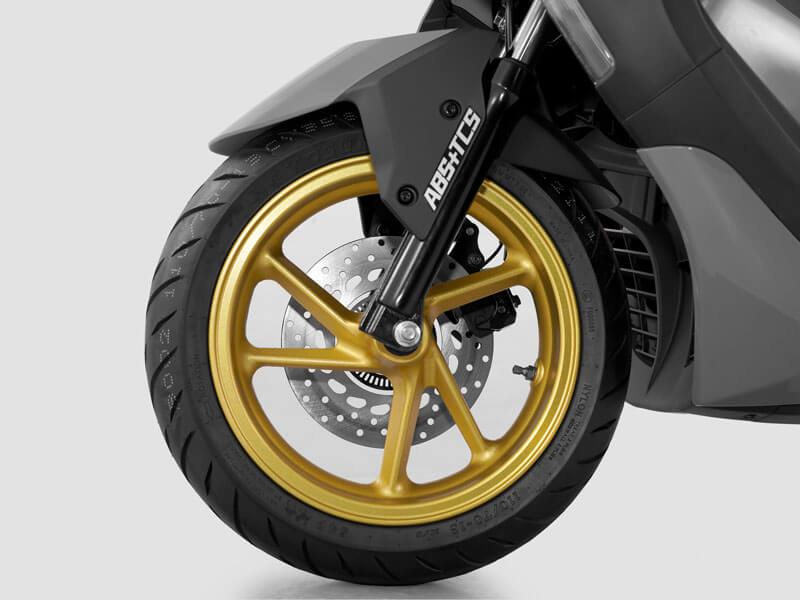

Dual -piston Caliper
Front & Rear
ABS+TCS Systems
Stable,efficient, strong
Front & Rear
ABS+TCS Systems
Stable,efficient, strong

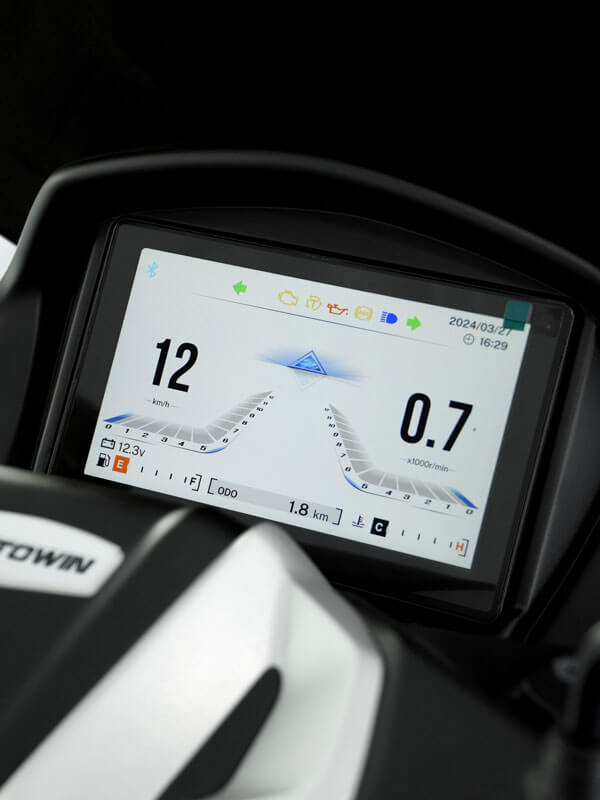

7" TFT Dashboard
Intelligent technology empower
High Definition
Concise UI Design
Intelligent technology empower
High Definition
Concise UI Design

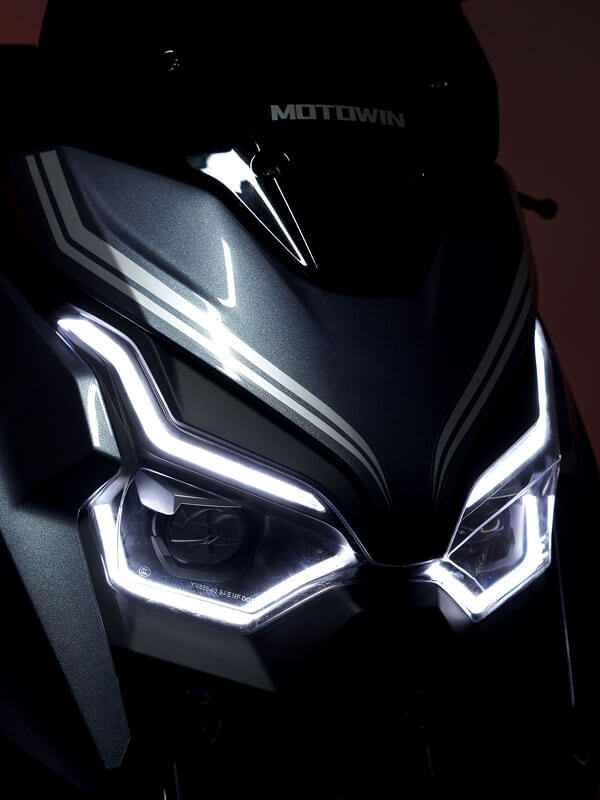

LED Lights
High brightness
Owl-eye night vision headlight
High brightness
Owl-eye night vision headlight

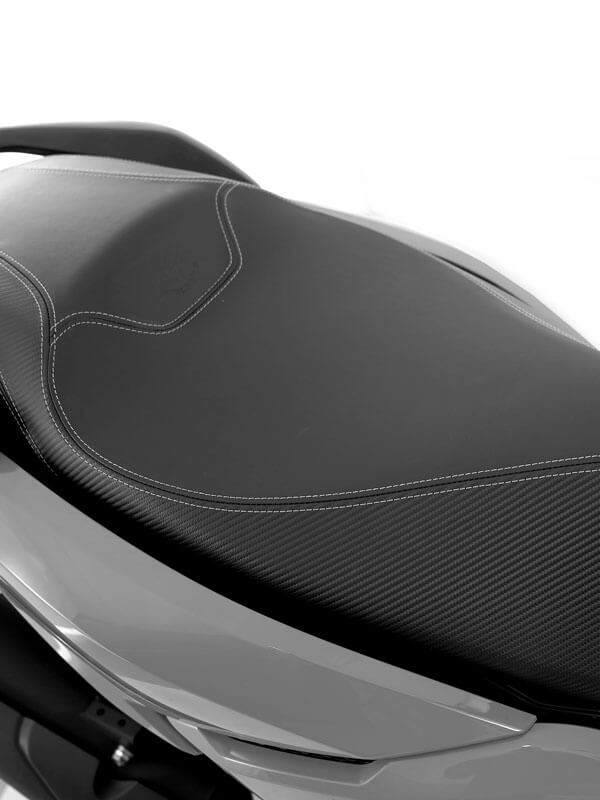

Two-stage Seat
Imported non-slip leather seat with cold foaming technique
Excellen riding expericence
Imported non-slip leather seat with cold foaming technique
Excellen riding expericence
Wider riding view
Complete record without lost
High-tech and reliable
Dual-line throttle
Comfortable and sensitive
Easy to control
Front & Rear
ABS+TCS Systems
Stable,efficient, strong
Intelligent technology empower
High Definition
Concise UI Design
High brightness
Owl-eye night vision headlight
Imported non-slip leather seat with cold foaming technique
Excellen riding expericence
DVR
Backlight Handlebar
Dual -piston Caliper
7" TFT Dashboard
LED Lights
Two-stage Seat
